MB 80 Office Double-Glass Walling System

Interval Partition Walls

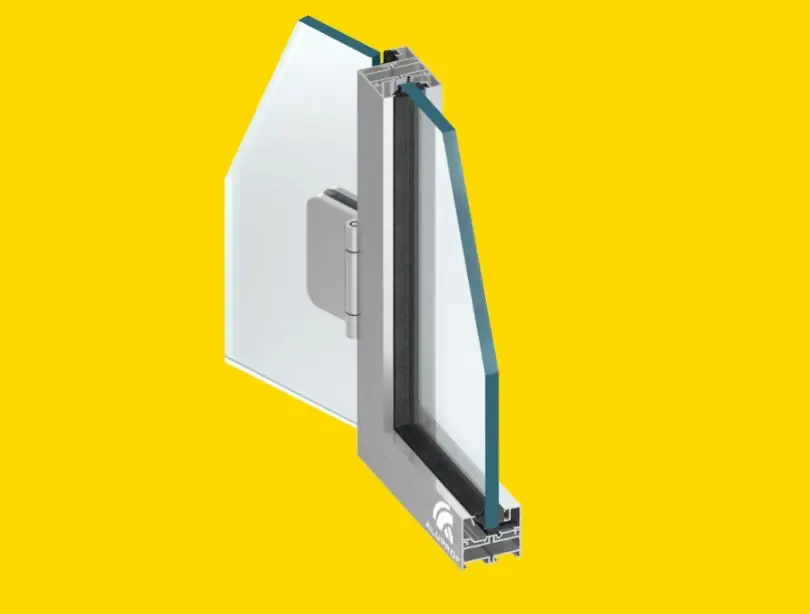

MB 80 Office double-glass walling system

The structural depth of profiles is 45 mm, which is identical to the depth of profiles of all the frames and studs of the MB-45 system. Both solutions are fully compatible, which allows to freely combine their profiles. The MB-45 OFFICE is based on a number of base profiles, which after tightening the appropriate adaptive profiles can function as a window or door frame, a transom or a stud.

Design

Modern

Unlimited designs

Comfort

Mobility

FIXED AND OPERABLE PARTITION SYSTEM

This internal partition double-glass walling system is designed to fabricate internal partitions in offices and other public facilities. The system enables the use of different types of infills, transparent or obscure, with internal louvers and electrical components and office equipment. These walls are especially suitable in buildings where a high sound insulation is required.

OUR ACHIVEMENTS

Years

0 +

Dealers

Countries

0 K

Satisfied Customers

FEATURES

Elite Windows & Doors MB-80 is offered as a complete system with the following:

Different types of infill: panes 4-14 mm thick, furniture boards 16-18 mm thick, gypsum plasterboards
Depth & construction of the basic profiles enables the installation of intra-pane louvers
Can be combined with a standard, 75 mm-thick gypsum plasterboards
Excellent sound insulation in office spaces – noise reduction of 50 dB depending on the type of infill used
Possibility to fabricate 80 mm & 92 mm walls
Custom division of space, angle of refraction within the range 90°÷180°
Simple prefabrication & installation, direct on-site pre-fabrication in option
Cables inside the wall, installation of standard power sockets
Maximum development height: 5.5 m

COLORS OPTIONS

Over 450 different shades and finishes are available: metallic or anodized, matt, gloss or structural RAL-colors, or even special low maintenance and scratch resistant Coatex finish or Wood Decor.
