Considering a large pivot door? It can be a stunning focal point of your entrance.

At the entrance, a hand closes around the long pull. The goal is the broad, quiet plane promised by the elevation. The obstacle appears as soon as the leaf moves: the broad side advances into one zone while the shorter heel side turns through the other, and the clear path shifts through the swing.

How a large pivot door leaf starts, gathers momentum, and settles depends on its construction, axis, hardware, adjustment, and conditions. A rendering or closed-door photograph cannot establish that behavior. Choosing the right large pivot door is essential for optimal performance.

Read the entrance as a moving assembly. Its offset axis connects the desired plane to the swing, usable passage, floor hardware, structure, drainage, glass, locks, installation, and later adjustment. Final dimensions should wait until those conditions agree around one proposed configuration.

The short answer

Choose a large pivot door when the project values one broad entrance plane and can reserve the full swing and heel-side zones, support the pivot hardware, resolve the threshold and water path, and document who owns installation and service. Incorporating a large pivot door provides an elegant solution for maximizing entryway space.

Choose another entrance type—or reduce or reconfigure the pivot leaf—when circulation conflicts with the swing, the nominal leaf width is being treated as the clear opening, the floor cannot accept the required hardware and support, or the design depends on an unqualified “flush” threshold.

Before rough-opening or order dimensions are released, put one proposed system through the full review. EWD’s pivot-door introduction identifies the category, but it cannot establish the quoted unit. Build the decision file around five things: the closed elevation; movement plan; threshold and wall section; configuration and evidence schedule; and a map of responsibilities.

Incorporating a large pivot door can significantly enhance the aesthetic and functionality of your entrance.

When selecting a large pivot door, consider the style, material, and functionality that best suit your entrance design.

The design and installation of a large pivot door can greatly influence the overall aesthetics of your space.

A large pivot door not only serves as an entrance but also adds a modern touch to your home or building.

Understanding the benefits of a large pivot door can help clarify its role in your design considerations.

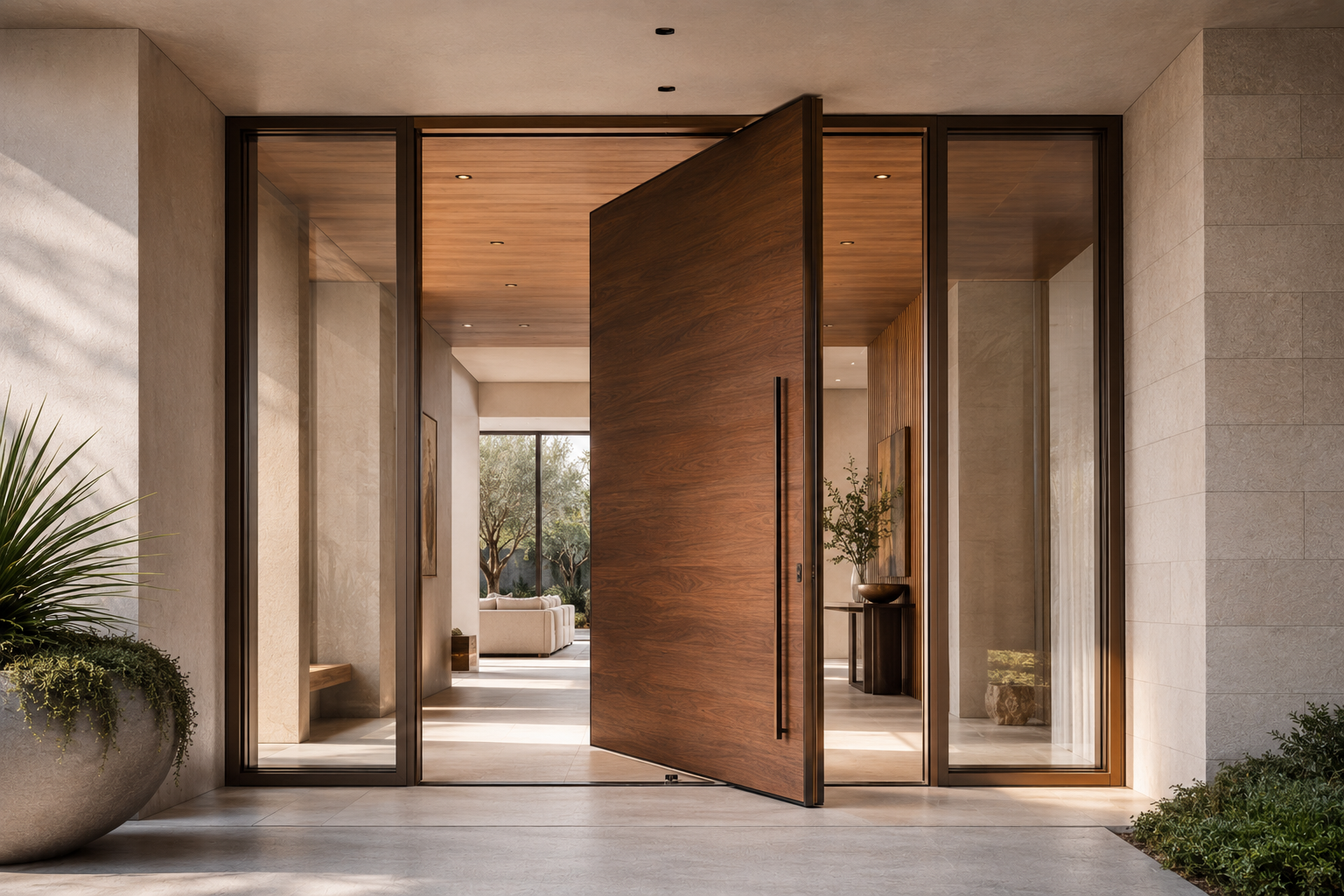

The technical difference begins with the pivot axis

A conventional side-hinged door turns at its edge. A large pivot door turns around an axis set into the leaf, allowing the broad side to advance through the entrance while the shorter heel side sweeps in the opposite direction.

Move that axis and several conditions change together: the visible proportions, the handle path, the clear passage, the heel-side clearance, the floor-hardware location, and the force the selected hardware must control. Start with a scaled operating plan, not a beauty elevation.

The axis changes every question in this table:

What changes	What to draw or document	Why it matters
Closed elevation	Leaf, frame, pivot line, pull, lock, glass, sidelights, and finished opening	Confirms the visual proportion and exact configuration
Pivot axis and heel side	Axis dimensioned from both leaf edges; heel-side sweep shown through the opening cycle	Exposes hidden movement behind the pivot point
Full swing	Leaf shown at several positions with approach, furniture, wall, landing, and stop conditions	Reveals collisions and unusable circulation before fabrication
Usable passage	Narrowest clear path at the intended open position	Prevents leaf width from being mistaken for clear opening
Threshold and bottom pivot	Floor levels, sill, seals, support, drainage, flashing, and service access	Coordinates the visual line with structure and water management
Operation and service	Hardware, movement control, lock sequence, adjustment points, warranty, parts, and responsible party	Tests whether the entrance can be operated and maintained as specified

These are coordination prompts, not capacity or performance statements. Leaf construction, dimensions, hardware, glass, exposure, sill, frame, and installation can each change the result.

Read the entrance in four conditions

1. Fully closed

Begin with the condition that protects the building between arrivals: the closed entrance. The elevation should show:

• overall frame and finished-opening dimensions;
• leaf width, height, thickness, and construction;
• pivot-axis location;
• fixed and glazed areas;
• pull, lock, reader, intercom, and other hardware;
• glass build-up and safety designation where applicable;
• finish and edge conditions; and
• the view from the principal approach and interior position.

“Large” and “minimal” are not dimensions. The elevation must identify the exact leaf, frame, hardware, glass, and finish being proposed.

2. Moving through the swing

Show the leaf at several positions rather than only closed and 90 degrees open. Check the broad-side and heel-side paths against people, furniture, artwork, switches, lighting, floor registers, mats, walls, sidelights, exterior steps, gates, planting, and drainage features.

Record the intended hold-open or stop positions and the sequence for approaching, unlocking, moving through, closing, latching, and securing the door. Test the actual proposed hardware and leaf build; a smaller showroom sample cannot establish how the final entrance will feel or behave.

3. Usable clear passage

A generous leaf can still produce a pinched route because the heel edge remains inside the opening. The frame, pull, chosen angle, nearby wall, and approach decide what a person or carried object can actually pass. A sofa, stroller, wheelchair, or equipment case may meet a moving edge where the elevation suggested open space.

Ask for the narrowest clear width at the intended open position, shown on the operating plan. If an accessible route or another clear-opening requirement applies, the responsible professional must confirm the measurement method and required result. The U.S. Access Board’s guide to entrances, doors, and gates explains why clear width, maneuvering space, opening force, closing speed, and thresholds must be considered as operating conditions rather than inferred from a closed elevation.

4. Cleaning and service

Determine how both faces and vertical edges can be reached with the leaf held safely. Locate drainage openings, access covers, adjustment points, seals, and hardware that require inspection. If routine work requires removing a finish or moving the leaf beyond its normal stop, the service plan should identify that condition and the responsible party. A closed-door photograph proves none of it.

Threshold and water path: resolve what sits below the sightline

Treat a nearly level transition as an assembly rather than a catalogue dimension. Follow the section from finished interior floor to the frame and bottom pivot, then through bearing, seals, sill, flashing, exterior surface, discharge route, and wall connection. If the route is blocked or disconnected, water can appear where the entrance meets adjacent floor or wall finishes; the clean interior line does not excuse an unresolved discharge path.

The drawing should identify:

• interior and exterior finished-floor elevations;
• threshold profile and transition heights;
• continuous bearing beneath the frame and pivot hardware;
• bottom-pivot or floor-plate location and service access;
• the sill’s drainage route and unobstructed outlets;
• exterior landing slope and discharge path;
• pan or sill flashing and its connection to the wall’s water-control layer;
• sealant locations and openings that must remain free to drain;
• finish build-ups and tolerances; and
• responsibility for every interface.

Building Science Corporation’s pan-flashing guidance illustrates the general water-control logic: collect incidental water below the opening, direct it outside, and connect that path to the wall’s drainage plane. That principle does not design this entrance. The manufacturer’s current detail and a project-specific enclosure review must control the assembly.

Exposure changes the question. A threshold under an overhang in a protected court is not the same condition as one facing wind, rain, or salt. EWD’s Southern California coastal window and door guide can frame the review, while the current manufacturer documents must supply the finish, drainage, maintenance, and exposure requirements for the proposed system.

Performance belongs to the named configuration, not the label

Neither origin language nor the words “pivot” and “large” report a tested result.

For glazed leaves or sidelights, request the complete glass build-up and the required safety designation. 16 CFR Part 1201 establishes federal safety requirements for architectural glazing materials used in doors within its scope and exemptions. The exact glass, labeling, local code path, and project application still require current technical and professional review.

Trace every air, water, or structural statement to the exact product designation and applicable test or certification record. A NAFS Performance Grade is more than a loose design-pressure number; the Fenestration and Glazing Industry Alliance’s Performance Class overview ties it to the other requirements identified by the standard. A material, country of origin, product family, catalogue, or unrelated specimen cannot donate its rating to the proposed door. Confirm:

• the test standard and edition;
• manufacturer and series;
• tested unit type, size, and direction of operation;
• frame, sill, seals, hardware, reinforcement, and glass;
• reported air, water, structural, thermal, acoustic, security, or other results;
• certification or listing status; and
• the rule used to connect that record to the proposed unit.

The California Building Standards Commission publishes the current Title 24 parts and local-amendment path. The applicable code, energy, safety, accessibility, structural, and permit requirements must be determined for the actual project by the responsible professionals and jurisdiction.

The boundary of a valid factory record is the specimen and conditions it documents. It does not establish the project’s opening structure, anchorage, flashing, installation, commissioning, or maintenance.

Structure, glass, hardware, installation, and service belong in the plan

Structure and installation

The floor and head conditions must locate and support the leaf while preserving anchorage, access, and installation tolerances. Before purchase, turn the work into a named responsibility matrix covering site measurement, shop drawings, structure, concealed services, embeds, sill support, flashing, adjacent finishes, installation, commissioning, and acceptance.

A product drawing can locate a connection; it cannot determine the project’s loads, substrate, reinforcement, movement, anchorage, or waterproofing. If support or adjustment lets the leaf move out of alignment, the symptom may be harder movement, incomplete latch engagement, or changed seal contact at one corner. Diagnose those conditions against the exact hardware and installation rather than a generic promise.

Glass, finish, pull, and lock

Request the complete final build, not an elevation labeled “glass,” “metal,” or “wood.” Glass, cladding, reinforcement, long pulls, multipoint locks, access-control devices, wiring, and edge details affect weight, thickness, balance, clearances, fabrication, and service access.

Draw the sequence a person will actually use: approach, unlock, pull or push, move through, close, latch, and secure. Confirm power, wiring routes, backup operation, reader and intercom locations, weather exposure, and who commissions each component.

Delivery and commissioning

Map how the frame, leaf, glass, and lifting equipment will reach the opening before the route closes around them. Record shipping orientation, package dimensions, unloading, access, staging, protected storage, lifting points, surrounding-finish sequence, and temporary weather protection. Then put installation, adjustment, operation testing, drainage inspection, cleaning, damage reporting, and punch work in writing. Commissioning should record the accepted clear opening, swing limits, movement, latch and lock function, seal contact, drainage openings, finish condition, and care instructions.

Maintenance and service

The service record should cover:

Understanding the Advantages of a Large Pivot Door

• inspection and cleaning intervals;
• permitted cleaners and finish care;
• drainage and seal maintenance;
• adjustment procedure and authorized technician;
• pivot, closer, lock, and access-control service;
• warranty term, exclusions, labor, and travel;
• replacement-parts identification and availability route; and
• the first response for water, operation, glass, finish, or security concerns.

A warranty name is not a service plan. The useful answer identifies the first call, the evidence to collect, and who can adjust the installed configuration.

The decision checklist

Have EWD consolidate the proposed configuration on a single review sheet:

Required field	What you should receive
1. System identity	Manufacturer, series, leaf construction, frame, finish, glass, hardware, and direction of operation
2. Pivot axis	Dimensioned axis, top and bottom pivot locations, and heel-side sweep
3. Full swing	Operating plan showing the leaf through its travel, approach, stop, and collision zones
4. Usable passage	Narrowest clear width at the intended open position
5. Operation	Proposed movement control, opening force or operating behavior to be verified, hold-open/stop positions, latch, and lock sequence
6. Threshold and drainage	Section with floor elevations, support, seals, drainage, flashing, slope, finish build-ups, and service access
7. Structure and anchorage	Required opening, floor and head support, anchorage, tolerances, concealed services, and professional coordination
8. Glass, finish, pull, and lock	Complete final build, safety designation, hardware, wiring, access control, and service access
9. Performance evidence	Applicable test or certification record, standard, specimen, reported results, and limitations
10. Delivery and access	Shipping, unloading, staging, lifting, protection, site route, and surrounding-finish sequence
11. Installation and commissioning	Written measurement, installation, flashing, adjustment, testing, cleaning, and acceptance scope
12. Maintenance, warranty, parts, and service	Care requirements, exclusions, adjustment route, parts, responsible party, and first response

Does a pivot door fit your entrance?

A pivot entrance earns its place when the broad plane matters, the plan can protect both sides of the swing, the required passage remains usable, and the team can resolve structure, water, hardware, delivery, installation, and service around one exact configuration.

Choose another entrance path when circulation or the landing conflicts with the moving leaf, nominal width is standing in for measured passage, a disappearing threshold has no defensible water section, final glass or hardware is unsettled, the proposed unit lacks required evidence, or commissioning and later adjustment have no owner.

The answer can change with a different axis, smaller leaf, more protected entrance, revised floor levels, other hardware, changed glass or finish, an alternate door type, or a clearer service scope. When one input moves, reopen the whole coordination set rather than editing only the elevation.

Bring Elite Windows & Doors the entrance plan and elevation, approximate opening dimensions, interior and exterior floor levels, exposure, desired swing and clear passage, glass and privacy priorities, lock or access-control needs, project city and ZIP, and current project stage. Use those twelve fields to hold the dimensions until the proposed entrance is coherent on paper.
